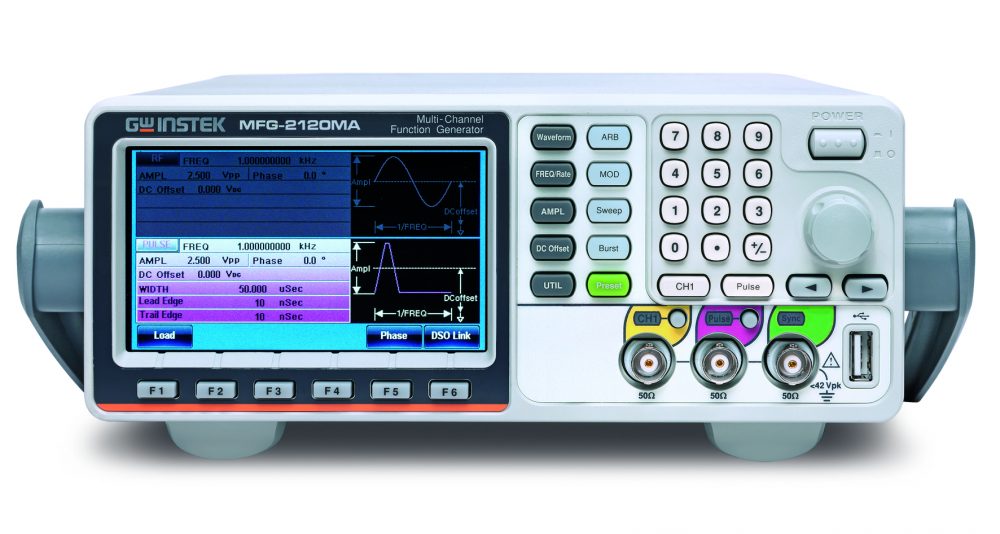

Model - MFG 2000 Series

• Maximum Five Output Channels
• - 2 Equivalent Performance Arbitrary Channels Frequency : 1μHz~10/20/30/60MHz
• - RF Channel Frequency (FG/ARB/MOD) : 160/320MHz
• - Pulse Generator Frequency : 25MHz
• - Power Amplifier : Low Frequency, 100kHz, Output 20W
• True Point by Point Output Arbitrary Waveform Function : 200MSa/s, 100MHz Repetition Rate, 14-bit Resolution,16k Point Memory Depth
• Earth Ground Isolation Design Among I/O Terminals and Instrument Chassis
• Frequency Counter : 150MHz, 8 bits Frequency Resolution
• AM/FM/PM/ASK/FSK/PSK/SUM/PWM Modulation
• USB Host/USB Device/LAN (MFG-22XX only)
• 4.3 Inch TFT Color Display

Multi-channel signal outputs to satisfy your diversified signal requirements

GW Instek launches the brand new MFG-2000 series multi-channel function generator, including MFG-21XX entry-level models and MFG-22XX advanced models. The output channels of MFG-21XX models include one single-channel 10M/20M/30M/60MHz ARB generator
