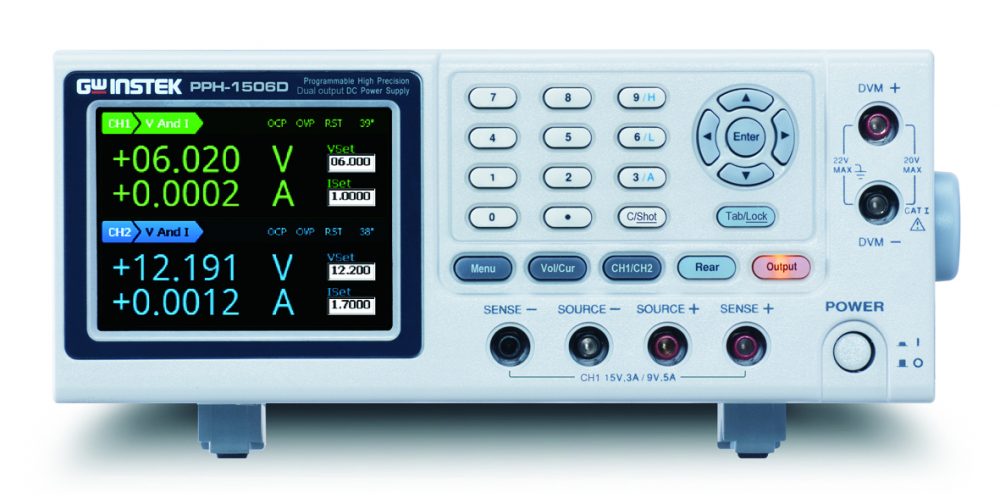

PPH Series 1503 / 1503D / 1506D
Features
- Dual Channel DC Power Output
- PPH-1503D (CH1: 0~15V/0~3A or 0~9V/0~5A; CH2: 0~12V/0~1.5A)
- PPH-1506D (CH1: 0~15V/0~3A or 0~9V/0~5A; CH2: 0~12V/0~3A)
- PPH-1510D (CH1: 0~15V/0~3A or 0~9V/0~5A, 0~4.5V/0~10A(Rear terminal); CH2: 0~12V/0~3A)
- 3.5 inch TFT LCD Display
- Built-in DVM Measurement Function
- High Measurement Resolution (1mV/0.1μA for 5mA Range)
- Current Sink Function (Maximum : 3.5A)
- Pulse Current Measurement
- Long Integration Current Measurement
- Sequence Function (Sequential power output)
- Built-in Battery Simulation Function
- OVP, OCP, OTP & Temperature Display for Heat Sink
- Support USB (Device& Host)/GPIB/LAN
- 5 Groups of Save/Recall Setting
- External RELAY Control
