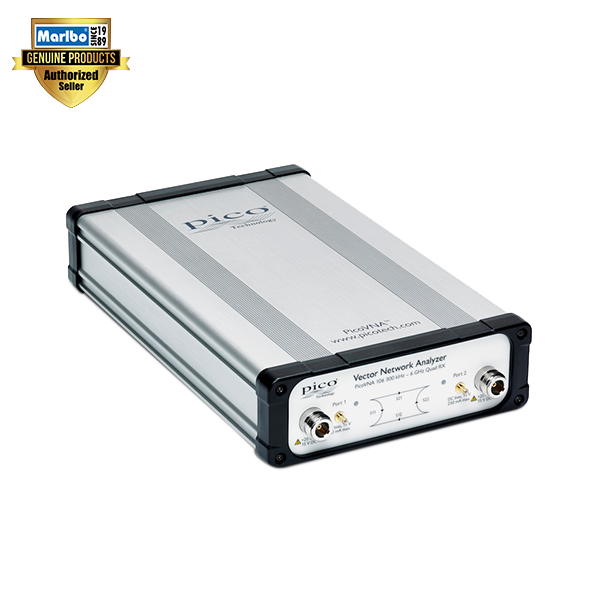

PicoVNA® Vector Network Analyzers

• 6 GHz and 8.5 GHz models
• 300 kHz to 6 or 8.5 GHz operation
• High speed, up to 5500 dual-port S-parameters per second
• PicoVNA 5 software: Intuitive and direct user interface
• > 10 000 S11 + S21 per second
• Quad RX four-receiver architecture for best accuracy
• Up to 124 dB dynamic range at 10 Hz bandwidth
• 0.005 dB RMS trace noise at a maximum bandwidth of 140 kHz
• Half-rack, small-footprint, lightweight package
• Reference plane offsetting and de-embedding
• Time domain and port impedance transformations
• Up to 4 live + 4 memory traces on dual y-axis display channels
• Save on trigger for high-speed device profiling (PicoVNA 108)
• Dual-frequency mixer measurements with VSWR correction (PicoVNA 108)
• Phase meter, P1dB, AM to PM, and stand-alone signal generator utilities
• Male and female SOLT and automated E-Cal calibration standards
• Guided 8/12-term, SOLT, TRL, and TRM calibrations including unknown-through
• Confident measurement based on traceable data for all calibration and check standards
