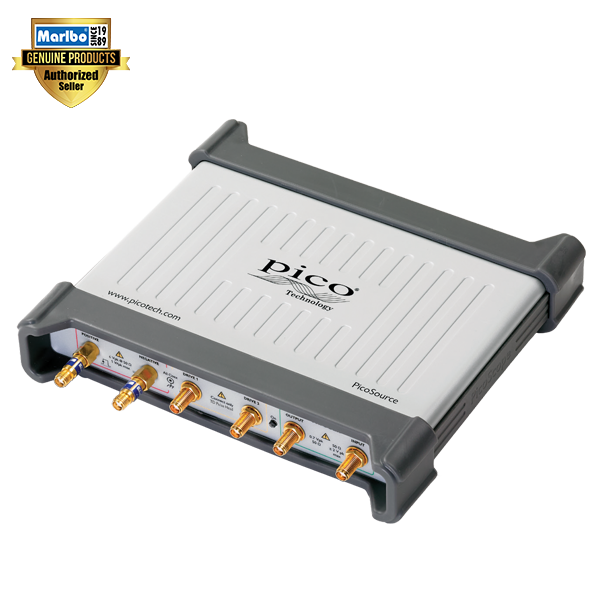

PicoSource PG900 Series

• Integral 50 Ω SMA(f) Step Recovery Diode outputs
• < 60 ps transition time
• Dual 2.5 to 6 V variable amplitude outputs
• ±1 ns in 1 ps steps timing deskew
• 200 ns to 4 μs pulse width
• 1 μs to 1 s internal clock period
• ​< 3 ps RMS jitter relative to external trigger
• –20 dB 10 GHz SMA(m-f) attenuator included with Step Recovery Diode output
