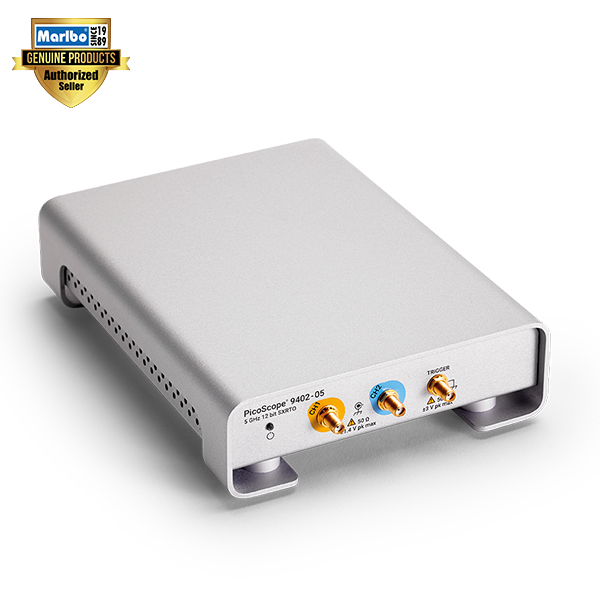

PicoScope 9400 Series

• SXRTO (sampler-extended real-time oscilloscope)
• 9404-16 and 9402-16: 16 GHz bandwidth, 22 ps transition time and 2.5 TS/s (0.4 ps resolution) random equivalent-time sampling
• 9404-05 and 9402-05: 5 GHz bandwidth, 70 ps transition time and 1 TS/s (1 ps resolution) random equivalent-time sampling
• Pulse, eye and mask testing down to 45 ps and up to 11 Gb/s
• 12-bit 500 MS/s ADCs
• Intuitive and configurable touch-compatible Windows user interface
• Comprehensive built-in measurements, zooms, data masks and histograms
• ±800 mV full-scale input range into 50 Ω
• 10 mV/div to 0.25 V/div digital gain ranges
• Up to 250 kS trace length, shared between channels
• Optional clock recovery trigger on all models – 5 or 8 Gb/s
• Recovered clock and data outputs
