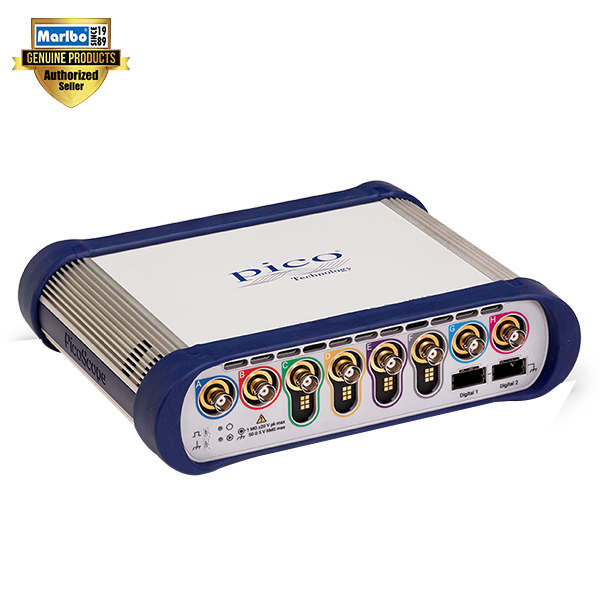

PicoScope 6000E Series

• Up to 3 GHz bandwidth
• 8-bit to 12-bit FlexRes® ADC
• A choice of 4 (up to 3 GHz) or 8 (up to 500 MHz) analog channels
• Supports up to 16 digital MSO channels
• 200 ms capture time at 5 GS/s
• Up to 10 GS/s with the PicoScope 6428E-D
• Up to 4 GS capture memory
• 50 MHz 200 MS/s 14-bit AWG
• 300 000 waveforms per second update rate
• PicoScope, PicoLog® and PicoSDK® software included
• 38 serial protocol decoder/analyzers included
• Mask limit testing and user-definable actions
• High-resolution time-stamping of waveforms
• Over ten million DeepMeasure™ results per acquisition
• Advanced triggers: edge, window, pulse width, window pulse width, level dropout, window dropout, interval, runt, rise/fall time and logic
