EL-3000/3000H Series Programmable DC Electronic Load
Features
- Operating voltage (DC)：0~150V(PEL-3000)/ 0~800V(PEL-3000H)
- Operating Mode : C.C / C.V / C.R / C.P / CC+CV / CR+CV / CP+CV
- Parallel Connection of Inputs for Higher Capacity (Max : 9,450W)
- Support of High Slew Rate：Max. 16A/us((PEL-3000)/ 0.84A/us(PEL-3000H)
- Run Program Function（GO/NO GO Test）
- Sequence Function for High Efficient Load Simulations
- Dynamic(Switching) Function：0.0166Hz ~20kHz
- Soft Start Function：Off / On(1~200ms, Res：1ms)
- Adjustable OCP / OVP / OPP / UVP Setting
- Short Circuit Function
- Timer function : Elapsed Time of load on

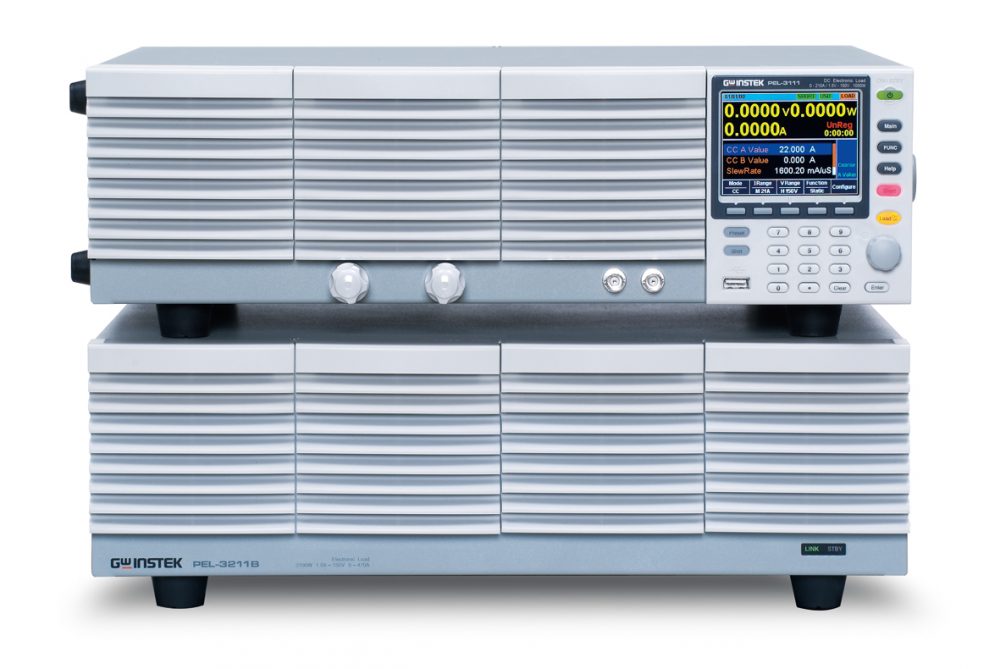

The PEL-3000 series, a single-channel, programmable D.C. electronic load with 0.01mA current resolution and 16A/μs current Slew Rate, is very ideal for testing server power supply and SPS (Switching Power Supply).
The PEL-3000H programmable DC Electronic load, which not only inherited functions and features from the PEL-3000 series but providing three current ranges for all PEL-3000H series and adding voltage monitor BNC terminals on the front panel.
