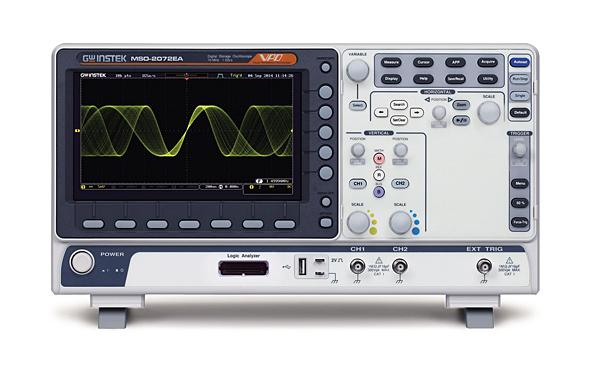

Model - MSO 2000E
Features
- 200/100/70MHz bandwidth selections: 2 or 4 channels
- MSO-2000E equips with a 16-channel logic analyzer
- MSO-2000EA equips with a 16-channel logic analyzer and a dual channel 25MHz arbitrary waveform generator
- Real time sample rate for each channel is 1GSa/s (2-channel models);Maximum real time sample rate is 1 GSa/s (4- channel models)
- Maximum 10M memory depth and VPO waveform display technology
- Waveform update rate up to 120,000 wfms/s
- 8 ” WVGA TFT LCD screen display
- Free Frequency Response Analyzer Software
- Maximum 1M FFT provides higher frequency domain resolution measurements
- High Pass, Low Pass and Band Pass Filter Functions
- 29,000 segmented memory sections and waveform search function
- I2C/SPI/UART/CAN/LIN serial bus trigger and decoding functions
- Data log function is able to track signal changes up to 100 hours
- Network storage function
