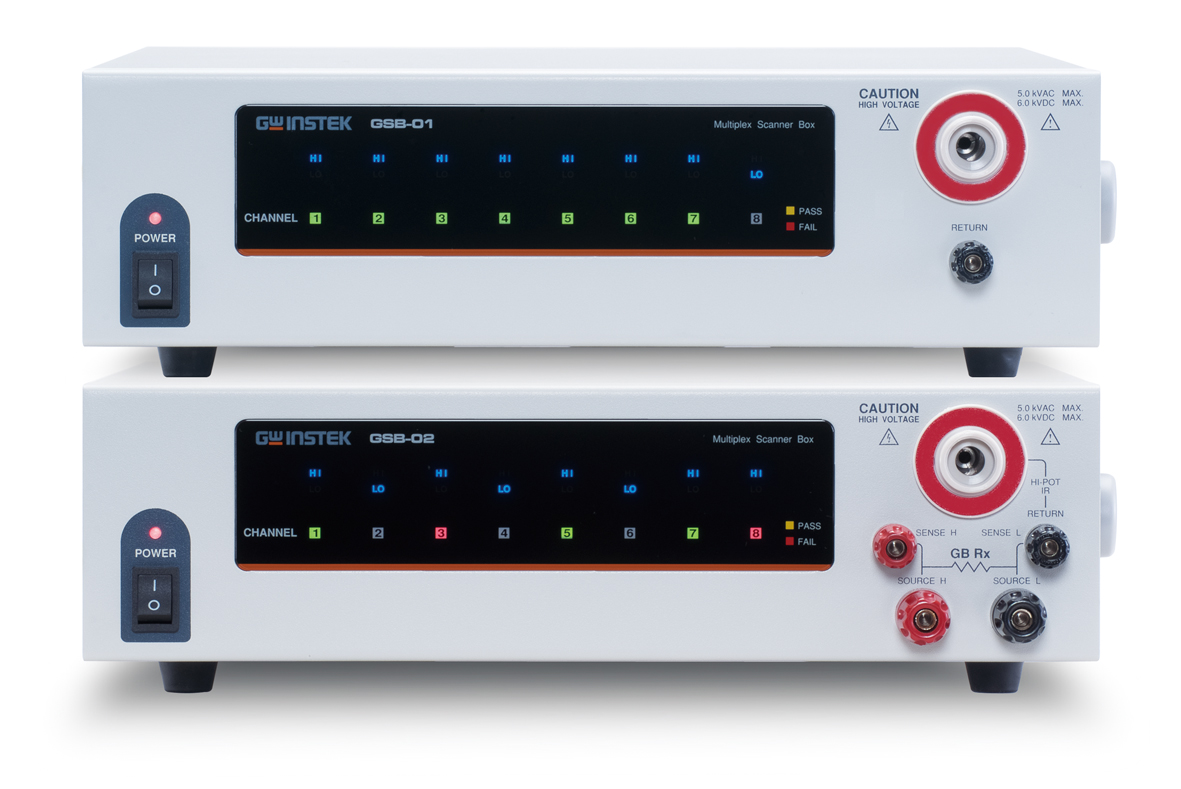

GSB-01 & GSB-02 Multiplex Scanner Box
Features
- GSB-01 (8CH High Voltage Scanner Box)
- GSB-02 (6CH High Voltage and 2CH Ground Bond Scanner Box)
- Front & rear input connector design is suitable for the GPT-9800/9900/9900A series
- A maximum of 4 scanner boxes (32 CH) can be connected to one GPT-9800/9900/9900A series
- High-intensity LED for Channel, Status & Judgment indications
It adds the following functions to the GPT-9800/9900/9900A tester:
- One scanner extends the output to eight channels. A potential of HI, LO, or X can be set for each channel and an AC/DC withstanding voltage, insulation resistance or ground bond test can be conducted at any eight test points depending on model of scanner.
- A maximum of four scanners can be connected to one GPT-9800/9900/9900A tester. This allows the output to be extended to up to 32 channels.
