Coil Analyzer SAT30A

Experience in field tests shows that measuring the resistance of the coil is a very important task for monitoring the status of circuit breakers. This feature makes the Coil Analyzer SAT30A is one of the most versatile and useful equipment in the market.

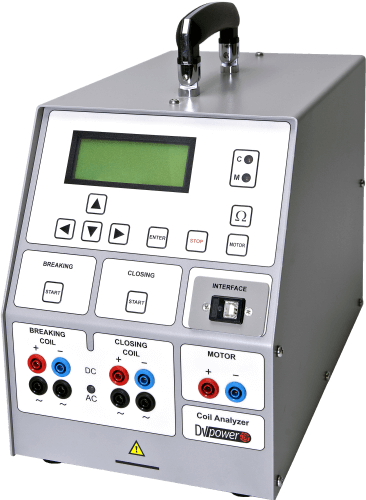

Coil Analyzer SAT30A is a powerful instrument ideal for testing of circuit breakers, where substation battery is not connected or available. The SAT30A is intended to operate breaker coils, and spring charging motors as a part of commissioning and maintenance testing.

SAT30A measures current and resistance of circuit breaker coils. SAT30A can also be used to test minimum trip voltage of circuit breaker coils.
Output voltage is selectable from 10 V to 300 V DC or from 10 V to 250 V AC.

The set is equipped with thermal and over current protection. SAT30A is easy to use and has accessory cable-set with touch-proof contacts.
The SAT30A has very high ability to cancel electrostatic and electromagnetic interference in the HV electric fields. It is achieved by very efficient filtration. The filtration is made utilizing proprietary hardware and software.
The SAT30A is used for:
. Switch operations
. Voltage supply to spring charging motors
. Measurement of the resistance of the coils
. Measurement of the current of the coils
. Power in tests with CB analyzers from other manufacturers

The SAT30A can also be used as a general power supply or a temporary battery charger.
