Model - 9300B

Features
  • Frequency Range: 9kHz ~ 3 GHz
  • 0.025ppm Frequency Stability and 1ppm aging Rate
  • Built-in Preamplifier, 50dB Attenuator, and Sequence Function
  • RBW: 1Hz ~ 1MHz
  • Sensitivity: -149dBm/Hz (@PreAmp on)
  • Built-in AM/FM Demodulation & Analysis
  • Built-in P1dB point, Harmonic, Channel Power, N-dB bandwidth, OCBW, ACPR, SEM, TOI, CNR, CTB, CSO, Noise Marker, Frequency Counter, Time Domain Power, Gated Sweep
  • Built-in Spectrogram, Topographic and Dual-View Display Modes
  • Remote Control Interface: LAN, USB, RS-232
  • Options: Tracking Generator, GPIB Interface

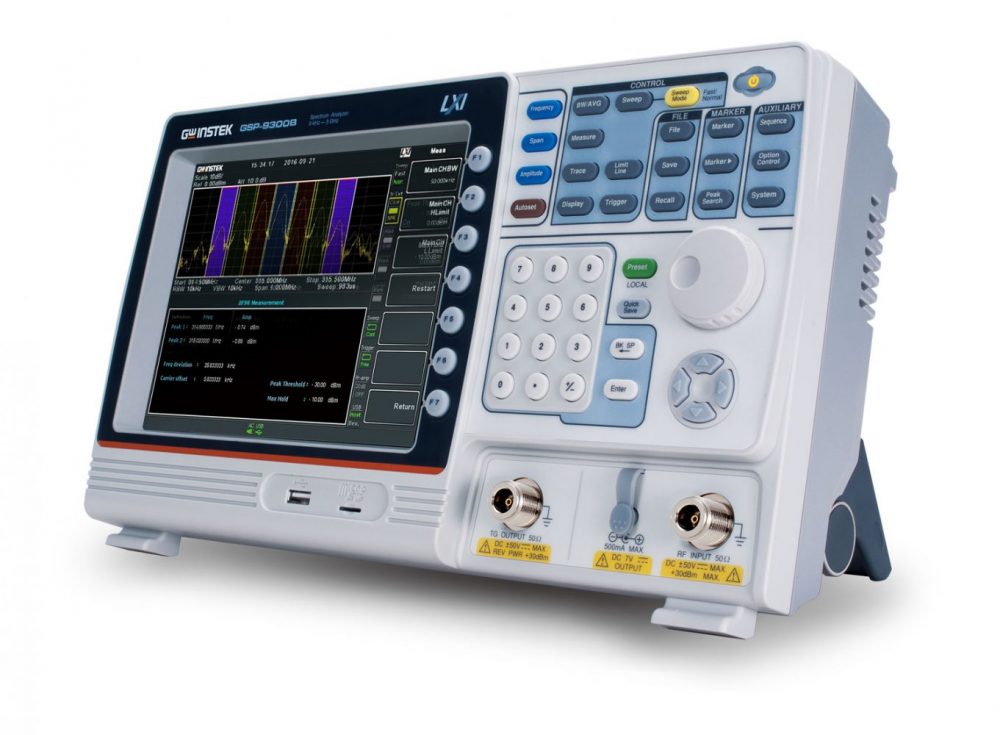

GSP-9300B is a 3GHz spectrum analyzer to meet basic RF measurement requirements. It provides the frequency stability of 0.025ppm; the aging rate of 1ppm/year; a built-in preamplifier; the base noise of -149dBm/Hz, and more than 20 measurement applications, including AM/FM modulation signal analysis, signal channel analysis, and CATV parameter test. While collocating with TG option, GSP-9300B can conduct frequency response or power linearity tests for components.
